In the fast - paced world of energy storage and electric mobility, lithium batteries have become the cornerstone of power solutions. A crucial piece of equipment in the lithium battery manufacturing process is the lithium battery formation and capacitance tester cabinet. This article aims to provide a comprehensive understanding of what this device is and its significance.
A lithium battery formation and capacitance tester cabinet is a specialized piece of equipment designed to perform two essential processes on lithium batteries: formation and capacitance testing.
Formation is the initial charging process that activates a new lithium battery. During this stage, the battery's internal chemical reactions are initiated and stabilized. The formation process helps to form a stable solid - electrolyte interface (SEI) layer on the surface of the electrode. This layer is crucial as it protects the electrode from further degradation and enables efficient lithium - ion transfer during charge and discharge cycles.
Capacitance testing, on the other hand, is used to measure the battery's capacity accurately. The capacity of a lithium battery represents the amount of electrical charge it can store, usually measured in ampere - hours (Ah) or milliampere - hours (mAh). By precisely determining the capacitance, manufacturers can ensure that the batteries meet the required specifications and quality standards.

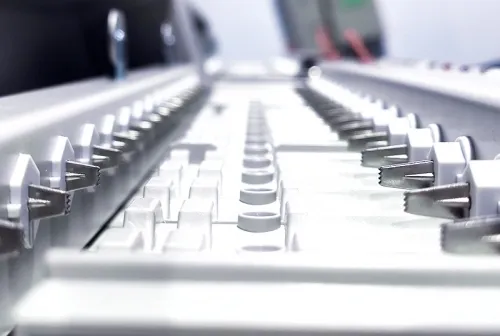

The lithium battery formation and capacitance tester cabinetoperates based on a set of controlled electrical parameters. It is equipped with multiple channels, each of which can independently charge and discharge a single battery or a group of batteries in parallel.
During the formation process, the cabinet supplies a carefully regulated current and voltage to the battery. The charging rate, voltage limits, and charging time are precisely controlled to ensure a proper formation of the SEI layer. For example, a slow charging rate may be used initially to allow the chemical reactions to occur smoothly and evenly.
When it comes to capacitance testing, the cabinet discharges the battery at a constant rate until the battery voltage reaches a predefined cut - off value. By measuring the amount of charge released during the discharge process, the actual capacitance of the battery can be accurately calculated. Advanced cabinets also have the ability to perform multiple charge - discharge cycles to obtain more reliable capacitance data.
Quality Control: The formation and capacitance testing processes are integral to ensuring the quality of lithium batteries. By accurately measuring and controlling the battery's performance parameters, manufacturers can identify and eliminate defective products early in the production line. This helps to improve the overall reliability and consistency of the battery products, reducing the risk of product failures and customer complaints.
Battery Performance Optimization: Understanding the true capacitance of a battery allows manufacturers to optimize its performance. For example, if the measured capacitance is lower than expected, the manufacturing process can be adjusted to improve the battery's capacity. Additionally, proper formation can enhance the battery's cycle life and reduce self - discharge rates, making it more suitable for various applications.
Meeting Industry Standards: In the highly regulated lithium battery industry, compliance with international and domestic standards is crucial. The data obtained from the formation and capacitance tester cabinets provides objective evidence that the batteries meet the required specifications, such as those related to capacity, voltage, and safety. This is essential for the batteries to be used in a wide range of applications, from consumer electronics to electric vehicles and energy storage systems.
There are different types of lithium battery formation and capacitance tester cabinets available in the market, each with its own set of features and capabilities.
Some cabinets are designed for small - scale production or laboratory use. These typically have a relatively small number of channels, making them suitable for research and development purposes or for testing small batches of batteries. They may also offer more flexibility in terms of parameter adjustment, allowing researchers to experiment with different charging and discharging conditions.
On the other hand, large - scale industrial cabinets are capable of handling a high volume of batteries simultaneously. They often have a large number of channels, sometimes in the hundreds or even thousands, to meet the production demands of large - scale battery manufacturers. These cabinets are highly automated, with advanced control systems that can monitor and manage the charging and discharging processes of each individual battery or group of batteries in real - time.
In addition, modern lithium battery formation and capacitance tester cabinets are equipped with features such as data logging and analysis. They can record detailed information about each battery's charging and discharging performance, including voltage, current, capacity, and temperature. This data can be used for quality control, process improvement, and product development.
In conclusion, the lithium battery formation and capacitance tester cabinet is an indispensable piece of equipment in the lithium battery manufacturing industry. It plays a vital role in ensuring the quality, performance, and safety of lithium batteries, enabling the development and production of reliable energy storage solutions for a wide range of applications. As the demand for lithium batteries continues to grow, the importance of these cabinets will only increase in the future.
